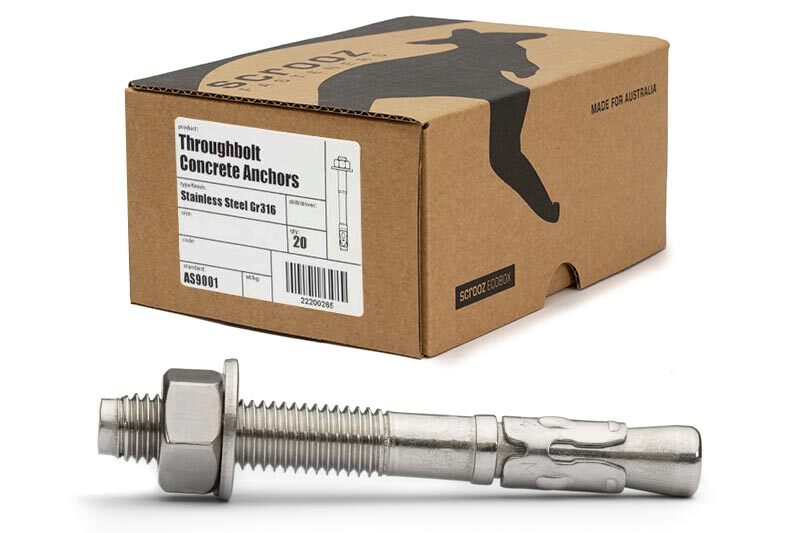

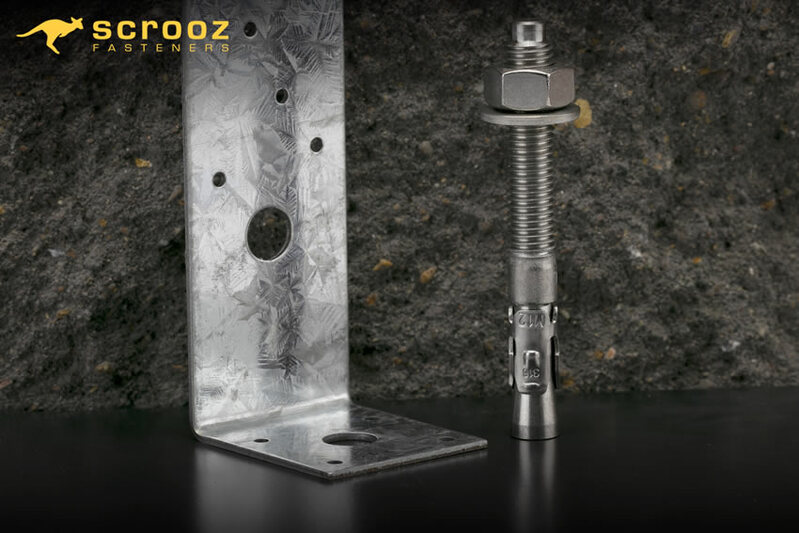

Through Bolts Stainless Steel 16 x 105mm Box 20

• Quantity: 20
• Anchor Diameter: 16mm
• Drill Size: 16mm
• Length: 105mm
• Effective Anchor Depth: 80mm
• Wrench Size: 24mm
• Washer Diameter: 29.8mm
• Recommend Tension Load 32MPa (80mm embedment): 9.0kN
• Minimum Edge and Spacing Distance: 110mm

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
