Threaded Rod Hangers

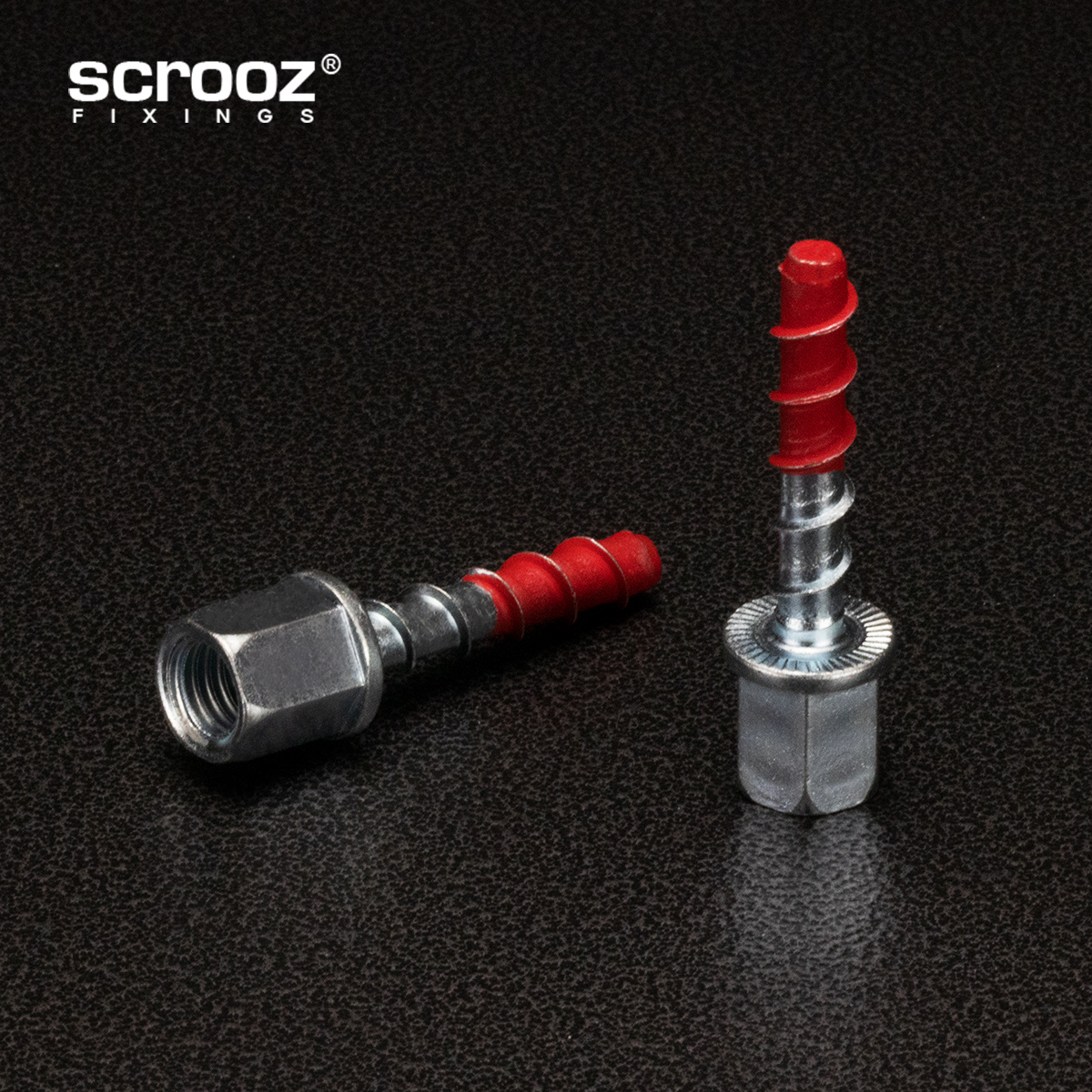

Threaded Rod Hangers main category image

threaded rod hangers fire rating badge

Threaded Rod Hangers Overview

Threaded rod hangers are screw in masonry anchors used in construction and industrial applications to suspend pipes, HVAC ducts, cable trays, and other equipment from ceilings or structural elements. Made from carbon steel and zinc plated for long life corrosion resistance. Dual thread M8/M10 or M10/M12 internal threads.

Threaded rod hangers includes ETA approvals for cracked and non-cracked concrete, fire resistance and C1 & C2 seismic applications.



Threaded Rod Hangers Features

  • Suitable for light to medium duty loads
  • Quick and easy to install, also fully removable
  • Tapered end for easy insertion into predrilled hole
  • Optimised thread pitch for increased installation speed
  • Serrated flange head for improved grip
  • Bright Zinc Plate for internal use and greta corrosion resistance



concrete screws eta approved badges

Threaded Rod Hangers Technical Info

M8/M10 x 40mm

  • 6mm pilot drill
  • C1 Seismic rated
  • Pilot hole size: 6mm
  • Embedment depth: 40mm
  • Minimum spacing: 35mm
  • Minimum edge distance: 35mm
  • Fire rated



M10/M12 x 60mm

  • 8mm pilot drill
  • C2 Seismic rated
  • Pilot hole size: 8mm
  • Embedment depth: 60mm
  • Minimum spacing: 40mm
  • Minimum edge distance: 40mm
  • Fire rated



For further technical information or if you require a tech data sheet please contact us for more info
