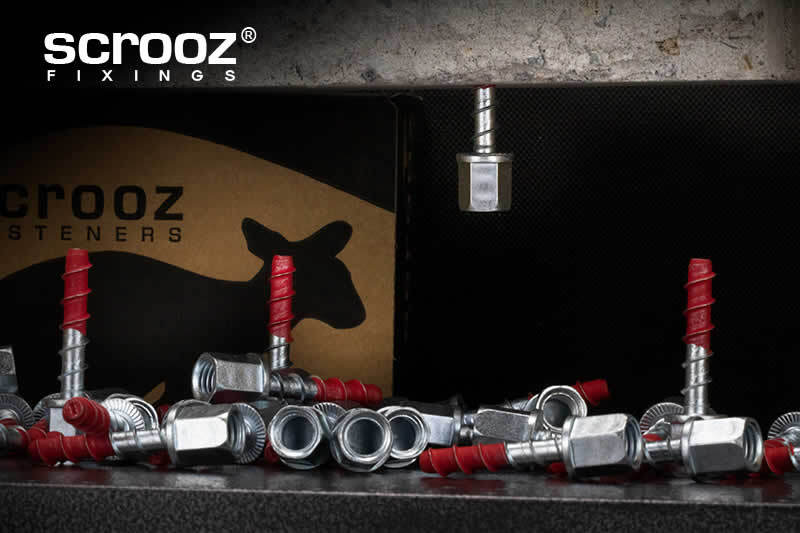

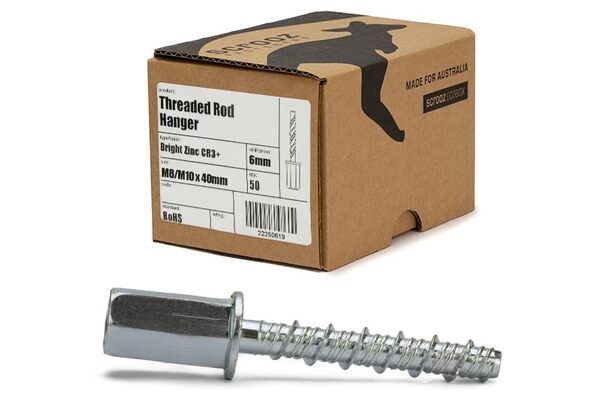

Threaded Rod Hanger M8/M10 x 40mm Box 50

Dual thread screw in masonry anchors used in construction and industrial applications to suspend pipes, HVAC ducts, cable trays, and other equipment from ceilings or structures. Threaded rod hangers includes ETA approvals for cracked and non-cracked concrete, fire resistance and C1 seismic applications.

Features:

• Quantity: 50
• Internal Thread: Dual thread M8 & M10
• Thread Pitch: M8 x 1.25mm and M10 1.5mm
• Drill Size: 6mm
• Length: 40mm
• Hex Head Height: 26mm
• Wrench Size: 13mm
• Effective Anchor Depth: 35mm
• Minimum edge distance: 35mm
• ETA Approved
• C1 Seismic rated
• Finish: Bright Zinc Plate
• Recommend Tension Load 32MPa: 3.9kN
• Recommended Shear Load 32MPa: 5.8kN

For further technical information, or if you require a tech data sheet, please contact us.

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
