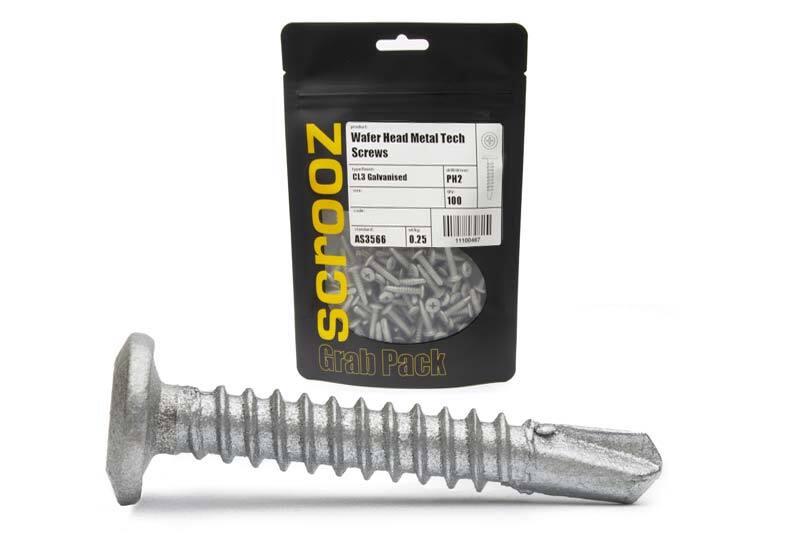

10g x 40mm Metal Wafer Tech Screws GAL pack 100

Wafer Head Tek Screws - 10g Self-Drilling Screws for Steel Frames and Bracketry (Class 3 Galvanised, PH2 Drive)

Product Specifications:

• Quantity: 100
• Screw Gauge: 10g
• Length: 40mm
• Thread Length: Full Thread
• Threads Per Inch: 16 TPI
• Shank Diameter: 4.8mm
• Head Diameter: 9mm
• Head Height: 2mm
• Finish: Class 3 Galvanised
• Material: Carbon Steel
• Driver Type: PH2
• Point Type: Tek Metal Self Drill
• Head Type: Wafer Head

Description:

Looking for reliable, low-profile wafer head tek screws designed for fastening directly into steel frames? Our 10g wafer head tek screws are engineered for high-performance fixing of bracketry, clips, and fittings to metal frames and steel structures. With a slimline design and a self-drilling Tek point, they eliminate the need for pre-drilling, making installation faster and easier on-site.

These screws feature a 10g gauge with a 4.8mm shank diameter, delivering exceptional strength and holding power. The metal self-drilling tip allows penetration into steel up to 4mm thick, making them ideal for light structural steelwork, internal steel framing, HVAC installations, and more.

The 9mm diameter wafer head with a low 2mm profile provides a wide bearing surface for secure fastening while remaining visually discreet. Finished in Class 3 galvanised coating, these screws are corrosion-resistant and suitable for both internal and exposed applications in harsh Australian conditions.

Fitted with a Phillips No.2 (PH2) drive, each screw ensures precise torque control and reduced cam-out, with a free PH2 driver bit included in every pack or carton for added value.

Key Features:

• Self-drilling Tek tip pierces steel up to 4mm thick without pre-drilling
• Class 3 galvanised coating protects against corrosion in outdoor and semi-exposed areas
• Great for installing brackets, clips, and fixtures into steel frames and channels
• Wide wafer-style head offers strong surface grip with a discreet, flush finish
• Each pack, box, and carton includes a complimentary PH2 driver bit for added convenience
