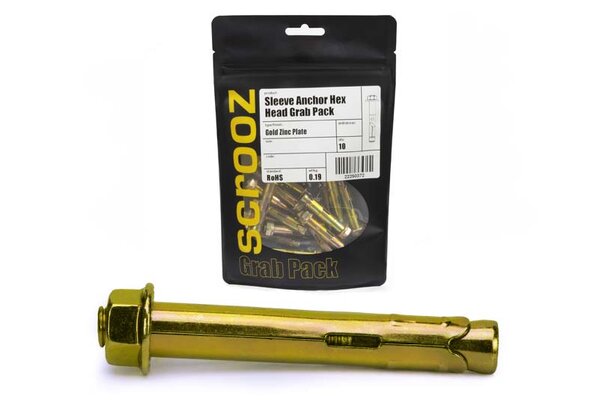

Sleeve Anchors 10 x 75mm BZP Grab pack of 10



Sleeve Anchors include the following features :

• Cost effective all steel, controlled expansion, medium duty thin walled anchors (dynabolts).
• Collapsible full length sleeves which distribute expansion forces evenly throughout the body length avoiding point loads.
• The ideal choice for use in brickwork, block work and friable materials as well as solid concrete.
• Sleeve anchors are pre-assembled through fixings for fast installation without the need for setting out.
• CR3+ Safeplate bright zinc plated finish for operator safe corrosion protection.





Installation info :



Diameter	Drill Size	Min Base Thickness	Min Embedment	Thread Size
6	6mm	60mm	25mm	M4.5
8	8mm	70mm	35mm	M6
10	10mm	80mm	40mm	M8
12	12mm	100mm	50mm	M10
