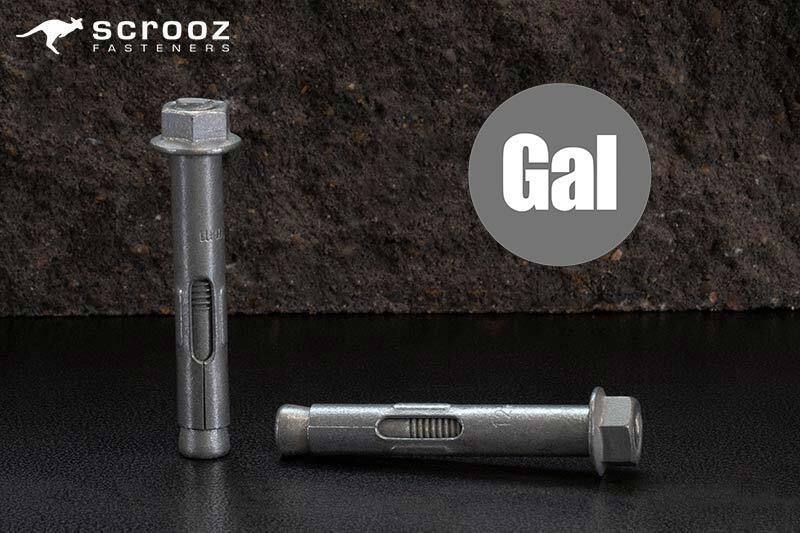

Sleeve Anchors 10 x 60mm GAL carton 400

Sleeve anchors are quick, easy versatile masonry and concrete anchor fasteners, that expand against the base material when the nut is tightened to allow for a strong connection and to help distribute load bearing weight. Meaning they can be used in a wide variety of applications from anchoring brackets to brickwork through to structural concrete anchoring applications.

Features:

• Quantity: 400
• Anchor Diameter: 10mm
• Drill Size: 10mm
• Length: 60mm
• Finish: Galvanised
• Effective Anchor Depth: 50mm
• Thread Size: M8
• Wrench Size: 13mm
• Flanged Head Diameter: 16.8mm
• Recommend Tension Load 32MPa (60mm embedment): 5.8kN

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
