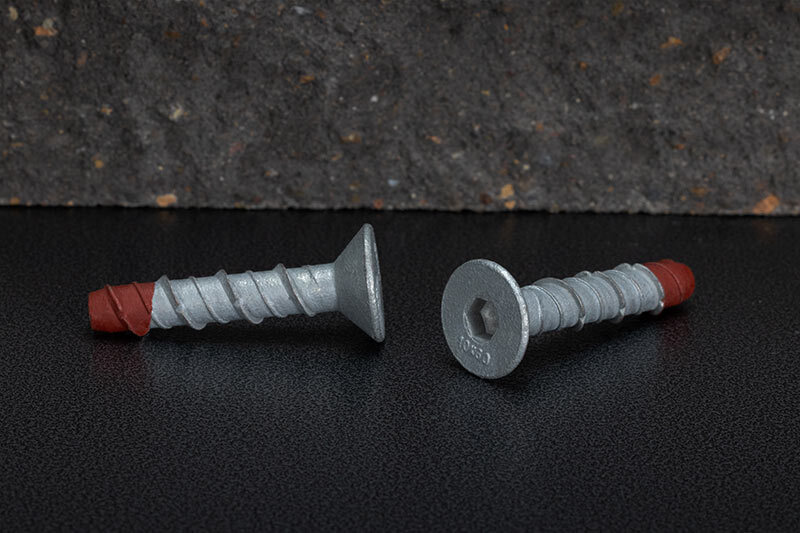

Screw Bolts Contractor CSK 12 x 150mm box 25

• Quantity: 25
• Shank Diameter: 12mm
• Drill Size: 12mm
• Length: 150mm
• Effective Anchor Depth: 55mm
• Driver: Hex 10
• Head Diameter: 27mm
• Finish: Mechanical Galvanised
• Recommend Tension Load 32MPa (55mm Embedment): 4.3kN
• Recommend Tension Load 32MPa (110mm Embedment): 19.0kN

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
