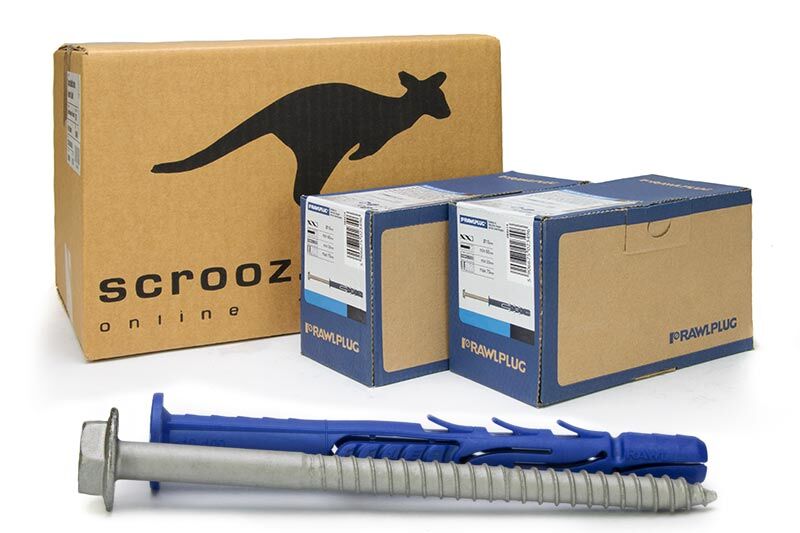

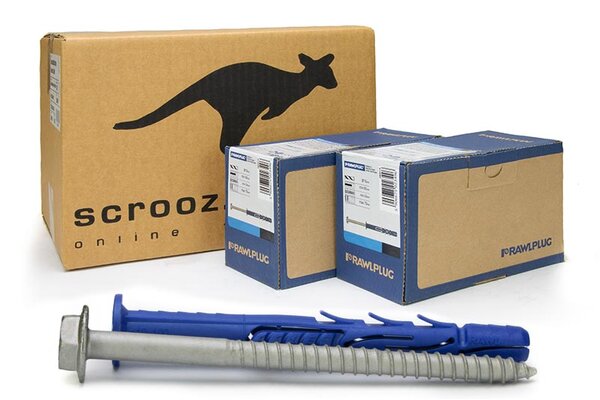

Rawlplug Frame Fixings Galv 10 x 100 CTN 100

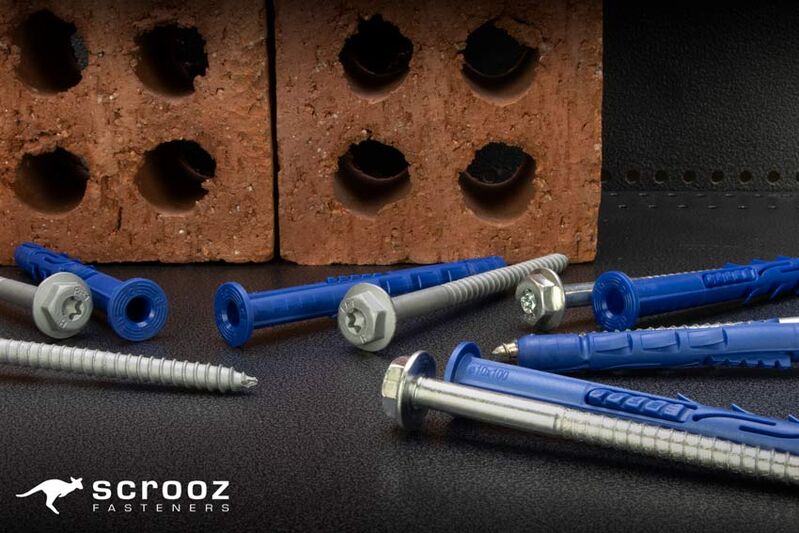

Rawlplug Frame Anchors - Premium Performance Fasteners for Masonry and Hollow Materials

Product Specifications:

• Quantity: 100
• Anchor Diameter: 10mm
• Drill Size: 10mm
• Length: 100mm
• Effective Anchor Depth: 70mm
• Anchor Material: Nylon Plug, Carbon Steel Screw
• Screw Diameter: 7.3mm
• Recommend Tension Load: 2.5kN
• Recommended Shear Load: 8.5kN

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.

Description:

Our high performance premium Frame Anchors are a heavy duty screw paired with a PA6 nylon long expansion frame anchor sleeve.

These high quality engineered frame anchors are Swiss manufactured and are fully independently tested to the highest European construction standards and are awarded the prestigious ETA certification (European Technical Approval). They comply with Australian NCC standards and full technical load data sheets are available to download below.

They are particularly recommended and suitable for use in hollow and or soft materials due to the full length split sleeve expansion which spreads the load over the full length of the anchor instead of the short expanding point load that most competitor anchors have.

They are approved for use in perforated brick, masonry, aerated concrete (hebel), clay and sand-lime brick. These medium to heavy duty frame anchors are available in Hex head, with bright zinc plate, hot dipped galvanised, or stainless steel finishes for premium corrosion protection.

Key Features:

• ETA certified and NCC compliant
• Fire rated (F90) for facade applications
• Galvanised for outdoor use and fantasic corrosion protection
• Extended full length expansion zone for best performance in soft materials and hollow brick.
• External wings to help stop the plug rotating in the drill hole.
