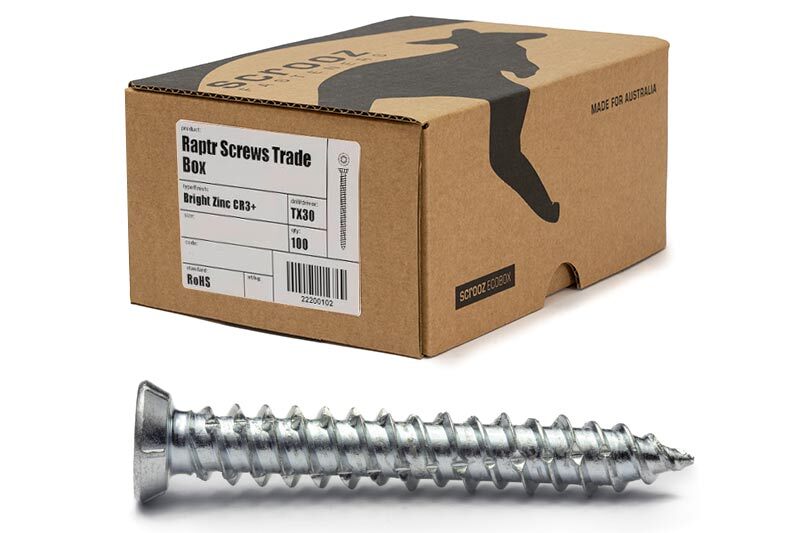

Raptr concrete screws 100mm trade box of 100
Bright Zinc Plated for Internal Use
What are they?
Raptr screws are revolutionary fixings designed specifically for fast fixing direct to concrete, brick, block and general masonry without any plugs or sleeves and with no expansion. They are easily and rapidly installed by just drilling a 6mm hole and then driving the anchor in using power screwdrivers and impact driver. Lengths range from 50 to 200mm and all Raptr's are 7.5mm diameter with a Torx 30 drive, 1 free bit supplied in every pack/box. Raptr's can also be used in timber as a woodscrew fixing or screw.
How do they work?
Raptr's are the latest step forward in plugless technology, they are designed and manufactured using our unique self cutting rifled threadform profile which cuts its own thread into the masonry and concrete when you drive them in, removal is no problem either, just unscrew them. They're strong too, with a working load of 120kg and max load of 360kg.
Normal expansion plugs only grip at the expanded end but Raptr's grip over their full circumference and their full length giving a large contact area in the masonry and providing a simple, high strength fireproof fixing, with just a small drillhole. As they're driven in, Raptr's bite firmly into the masonry for a strong solid fix, and best of all, they don't expand or stress the base material so you can fix them close to edges and corners or in slender materials avoiding cracking and spalling. Made from high strength steel they are fire resistant and coated in our CR3+ Safeplate bright zinc plated finish for operator safe corrosion protection and are suitable for internal and general purpose use.
Watch the movie to see them in action.
Where can I use them?

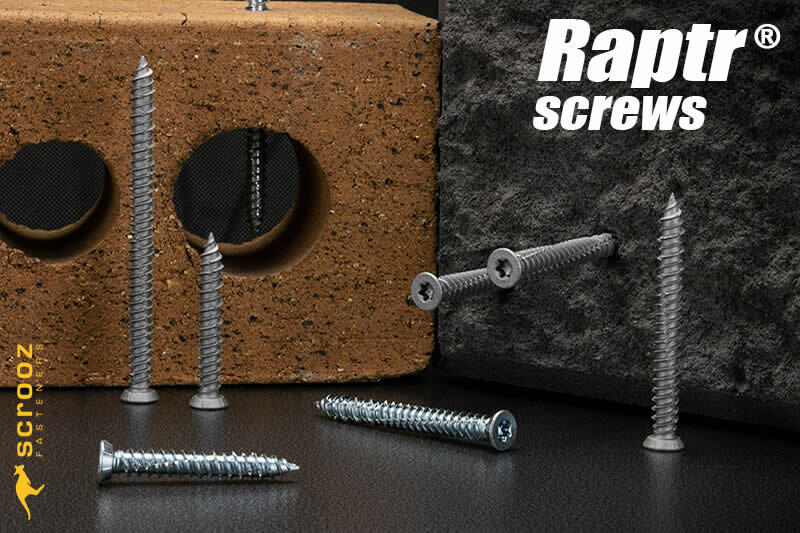

These self tapping hardened steel anchors can be used in concrete, masonry, stone and even rock. Raptr's are ideally suited for fixing of structural frames and partitions to concrete where fixing is often at the edge of the slab, risking stress cracking with expansion fixings like dynabolts or throughbolts. They're a more cost effective replacement and twice as fast to install than the more traditional expansion type anchor fixings and are also perfect for hollow concrete bricks and blocks where traditional fixings won't hold.
Main applications include rapid fixing of
- Structural partitions and framing
- Windows and door frames
- Battens and timber sections
- Brackets and assemblies
- Tracks and channels
- Electrical, ducting and building services
