Bolts and Nuts General Purpose Galvanised

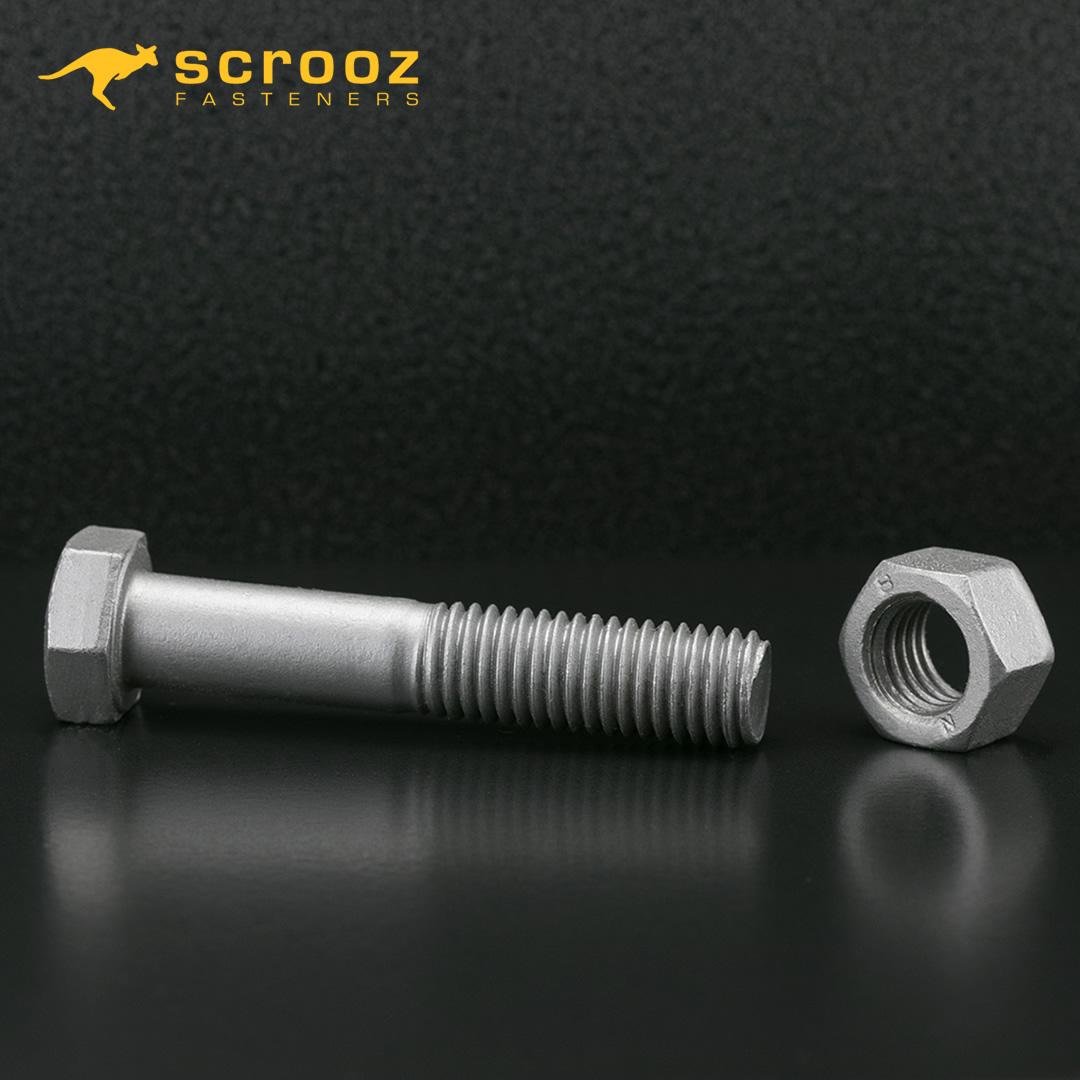

Hexagon head galvanised 4.6 grade bolts include the following features :
- Australian standard 1111.1.
- Supplied as full assemblies with matching hex nuts
- 2 free washers per bolt included
- Hot dip class 3 galvanised finish for external corrosion protection.
- Suitable for general purpose bolting for internal and external applications.
- Bolt lengths are all measured from under the head
Thread Lengths are as follows:
M6 Bolts = 30mm to 125mm lengths [18mm thread]. 125mm to 200mm lengths [24mm thread] (10mm Spanner)
M8 Bolts = 30mm to 125mm lengths [22mm thread]. 125mm to 200mm lengths [28mm thread] (13mm Spanner)
M10 Bolts = 30mm to 125mm lengths [26mm thread]. 125mm to 200mm lengths [32mm thread] (16mm Spanner)
M12 Bolts = 30mm to 125mm lengths [30mm thread]. 125mm to 200mm lengths [36mm thread] (18mm Spanner)
M16 Bolts = 30mm to 125mm lengths [38mm thread]. 125mm to 200mm lengths [44mm thread] (24mm Spanner)
M20 Bolts = 30mm to 125mm lengths [46mm thread]. 125mm to 200mm lengths [52mm thread] (30mm Spanner)
