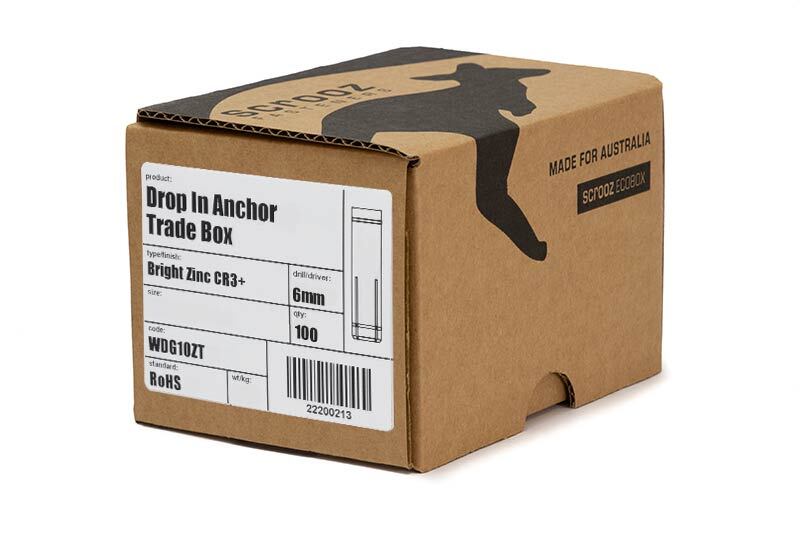

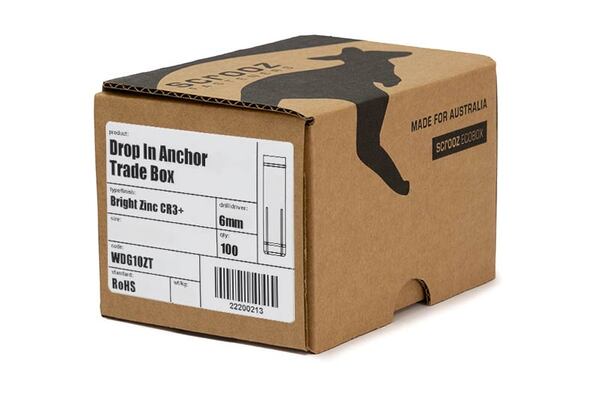

Drop in Anchors BZP M6 x 25mm trade box of 100



Drop In Anchors include the following features :

• Professional grade wedge anchors made from high strength steel.
• Provides an internal thread in masonry allowing fitting of any threaded fastener or rod.
• Suitable for fixing into solid masonry, stone and concrete.
• CR3+ Safeplate bright zinc plated finish for operator safe corrosion protection.

Correct size installation tool should be used to complete the fix and the setting tool should be driven until the shoulder mates with the edge of the anchor as shown in Fig. 4 otherwise the anchor is not set.



Refer to table below for drill sizes, edge distances and minimum bolt lengths for load bearing applications:



Diameter	Drill Size	Min Embedment	Edge Distance	Anchor Spacing	Min Thickness of Base	Min Bolt Length
M6	8mm	33mm	105mm	105mm	100mm	11mm
M8	10mm	33mm	105mm	105mm	100mm	13mm
M10	12mm	44mm	140mm	140mm	100mm	15mm
M12	15mm	54mm	175mm	175mm	120mm	18mm
